Ultimate Dual Sport Kit-Polaris RZR

PRODUCT DESCRIPTION

15% SAVINGS WITH BUNDLE!

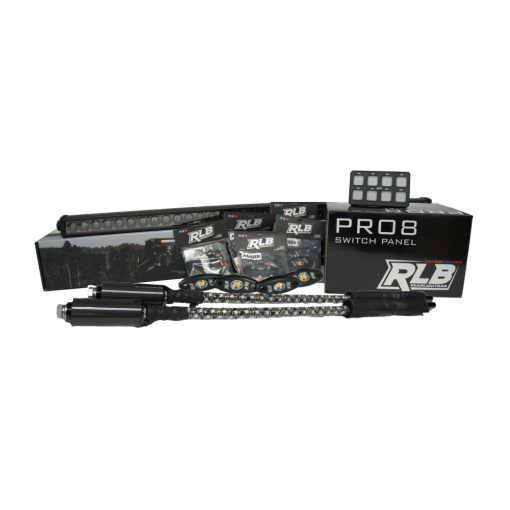

ULTIMATE KIT INCLUDES:

• (1) PRO8 KIT
• (1) RLB REAR CHASE LIGHT
• (1) PAIR BLUETOOTH RGB LED WHIPS
• (4) ROCK LIGHTS
• (2) PLUG & PLAY PIGTAILS

CHASE LIGHT FEATURES:

• RUNNING/BRAKE LED LIGHTS: Blinker capable with any blinker kit (sold separate)
• LED: DUAL COLOR OPTIONS: GREEN/AMBER/WHITE, BLUE/AMBER/WHITE, BLUE/GREEN/AMBER or AMBER/WHITE
• BESEEN™ROCKER SWITCH: Three position Multi-Function Rocker Switch; 1) COLOR OPTION OFF,  2) COLOR OPTION ON, and 3) MOMENTARY – Quick press – change COLOR strobe pattern (WHITE OPTION NO STROBE) & Long press (2 second hold) – switch between COLOR OPTIONS (GREEN/WHITE, BLUE/WHITE, BLUE/GREEN OR AMBER/WHITE). BESEEN™LED illuminated Rocker Switch fits all factory installed rocker slots, for both UTV and automotive.
• PROPRIETARY ROCKER SWITCH: Three position Multi Function Rocker Switch; 1) OFF, 2) ON, and 3) MOMENTARY – Quick press to change LED strobe pattern, long press – 2 second hold, changes between LED color options.
• LED STROBE LIGHT COMBINATIONS: 7 patterns; 1 SOLID, and 6 different strobe pattern combinations
• DUAL VARIABLE TRAC-MOUNTING-SYSTEM: 2 mounting slots run the full-length of light bar; 1 vertical (back side of housing) 1 horizontal (bottom of housing)
• PLUG & PLAY FOR ALL POLARIS RZR MODEL UTVs – NO EXTERNAL RELAY NEEDED
• BUILT-IN OVERVOLTAGE PROTECTION

SPECS:

• LED COLOR: RED: 620-360NM AMBER: 585-595NM WHITE: 6500-7000K BLUE/GREEN: 520-530NM
• LED SOURSE: Epistar 1w LED
• LED LIFE: 50,000 hour life expectancy
• LENS: Hard Impact Resistant Polycarbonate
• HOUSING: Powder coated Aircraft Grade Aluminum
• IP Degree: IP67 Fully Waterproof Housing
• WIRING: Sealed GM Style Deutsch waterproof connectors
• HARDWARE: Stainless steel, mounting bolts included
• Universal for all12V power source systems

Full Power Consumption: Dimensions:

36”: 36 Watt 36″L x 1.750″H x 2.125″D

30”: 30 Watt 30.125″L x 1.750″H x 2.125″D

22”: 22 Watt 22″L x 1.750″H x 2.125″

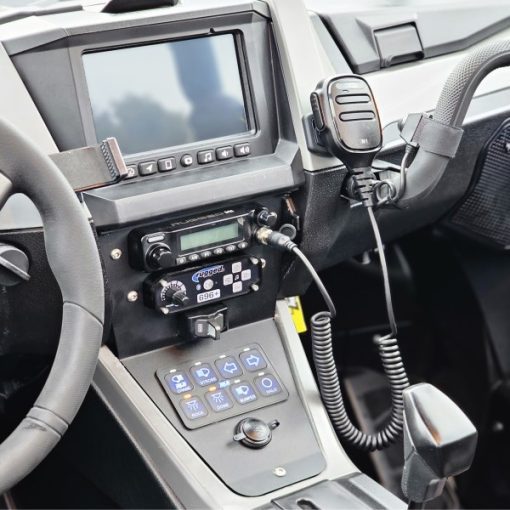

The PRO8 is an 8-button electronic programmable switch panel. Allows for easy installation of any 12V accessories to any off-road vehicle, UTV, Jeep, car, truck, RV, or boat. Waterproof, 100% serviceable, and with four easy mounting options. All-in-one Plug N Play kit.

PRO8 Power Module:

• Size: Length 8.27″, Width 6.3″, Height 2.24″
• Temp. Rating: Automotive -40c – 125c
• Waterproof and Dust Rating: Ip66
• Amp Rating: 100a Max
• Each Switch Output: 30a Max
• Low Voltage Cutoff
• Ignition Control

Switch Panel:

• Size: Length 4.57″, Width 2.72″, Height 0.47″
• Housing: Anodized Aluminum
• Switch Membrane and Sticker Legend: Polycarbonate
• Temp. Rating: -30c – 85c
• Waterproof and Dust Rating: 1p66
• Backlight Colors: White, Blue, Green, Red
• Switch Functions: on/off, Flash, Strobe, Momentary, Blinker
• Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount

All Systems Include:

• Sticker Legend
• Eight User-selectable Programmable Switches
• Eight 30a Circuits
• Waterproof Power Module
• 100% Serviceable, the Universal Relays and Fuses  Are Replaceable; Not Solid State
• 4 Backlight Color Options; White, Blue, Green, and Red
• Two Installation Options: Direct to Battery or Ignition Activated
• 4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
• Low Voltage Cut-off Protection
• Overvoltage Protection
• Completely Serviceable Fuse/relay Power Module

Switches Can Be Programmed for:

• On/off or Momentary
• Blinker
• Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
• Memory Function
• Master Memory on/off Function
• Waterproof Polycarbonate Overlay Faceplate

RGB WHIPS:

• 100% Pug-N-Play
• Wiring: Seal Deutsch waterproof connectors
• Up to 12000 Lumen
• 50,000 Hour LED Life Expectancy
• Over 300 colors and pattern choices, including chase, cascade, rainbow and dance to music
• .5 inch Nylon Fiberglass Industrial Strength Pole
• Carbon Fiber ProLock™ positive pressure base
• UV protected to prevent fading and cracking
• Stainless steel base mounting hardware
• IP DEGREE: IP67 Weatherproof
• Deutsche 3 pin metal automotive shielded circular power wire connector, for increased durability and longevity in the harshest conditions.
• BLEDIM2 App, download at Play Store
• Blue-tooth capable for Android 4.3 above or IOS 7.0 above, BLEDIM App controlled
• RLB nylon Flag Included
• 12V compatible

Rock Lights:

LED: CREE LED 50,000 hour life expectancy

LENS: Hard Coated Optic Poly-carbonate

HOUSING: Matte Black Die-cast Aluminum, UV-treated

IP DEGREE: IP68 Waterproof Housing

SIZE: Approx 2.8″(72mm)*1.6″(40mm)*0.5″(12mm)

2.5″(64mm) distance between mounting holes

MOUNTING: all hardware included for surface or tube mount

BEAM: 120-degree angle, flood

VOLTAGE: DC 9-32V

POWER: (3) 3 Watt LED = 9 Watt total

WEIGHT: 300 grams

OPERATING TEMPS: -20~50 degree Celsius
